Multi-Zone Gas Leak Monitor
Industry Leading Precision Monitoring for Low-level Gas Leak Detection
Bacharach’s Multi-Zone Gas Monitor provides precise measurements enabling early leak detection for compliance with refrigeration safety codes (ASHRAE 15, EN 378, CSA-B52) and emissions reduction standards (F-Gas, CARB).
- - Proprietary infrared (NDIR) sensor accurately detects the presence of a target gas down to an industry-leading 1 ppm Minimum Detection Level (MDL)
- - Sensor is not prone to false alarms caused by cross-interference from other gases or sudden changes in temperature or humidity

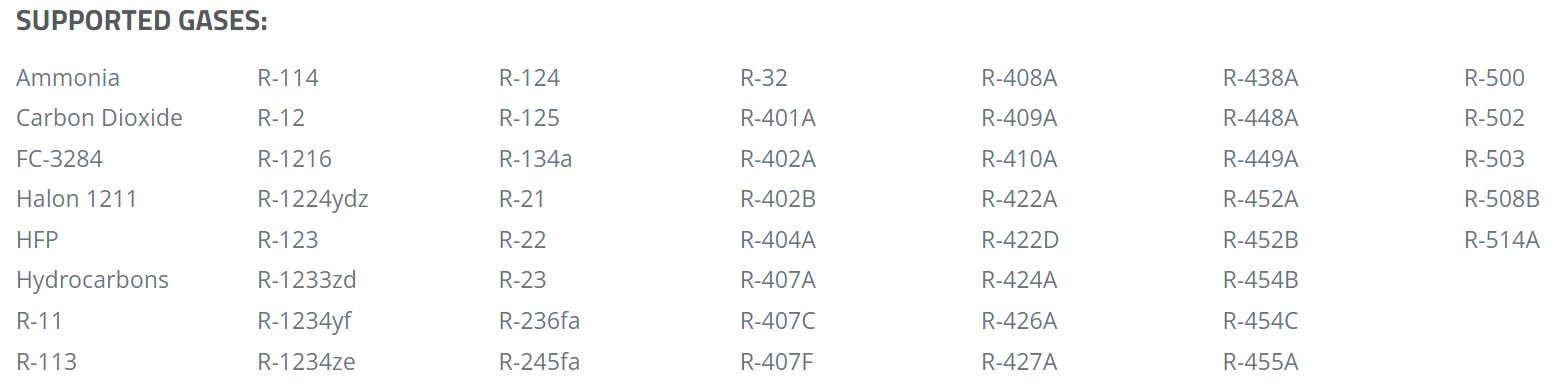

- - Gas library contains 60+ refrigerants, including CFCs, HFCs, HCFCs, HFOs and natural refrigerants (R-744, R-717)
- - Backlit display shows real-time concentration readings and makes configuration and self-diagnostics intuitive
- - Capable of monitoring up-to 16 zones (expandable up to 48 sample points) and detecting multiple gases with a single monitor
- - Two optional analog outputs (4-20mA) and Modbus communications (slave) for integration with third-party BMS / BAS control systems
- - Three user-configurable relays (leak, spill and evacuate) may be used to activate external beacons / sounders, ventilation or other countermeasures
Description
Bacharach’s Multi-Zone Gas Monitor delivers the best refrigerant leak detection available, with industry-leading MDL of 1ppm for halogenated gases, the fastest sampling frequency and the widest range of refrigerants accurately detected. The large graphic LCD display and LED status indicators provide a system-wide overview at a glance.
The Multi-Zone enhances effective refrigerant management and ensures compliance with refrigeration safety standards (ASHRAE 15, EN 378, CSA-B52) and emissions regulations (F-Gas, CARB RMP). It detects leaks early to enable cost savings by reducing refrigerant recharge, enhancing energy efficiency and reducing risk of refrigeration failure and produce loss. A variety of communication interfaces are available including Modbus, BACnet and LonWorks, allowing easy integration into BMS / BAS systems and remote monitoring solutions. Product Specifications
Sensor Channels: 4 to 16
Sample Points: 48
Measuring Range: Refrigerants: 0 to 10,000 ppm, Ammonia: 25 to 10,000 ppm Carbon Dioxide: 300 to 8,000 ppm
Sensitivity / Minimum Detection Limit: Refrigerants: 1 ppm, Ammonia: 10 ppm, Carbon Dioxide: 10 ppm
Accuracy: ±1 ppm ±10% from 0-1000 ppm (refrigerants); ±10 ppm ±10% from 0-10,000 ppm (Ammonia); ±5 PPM ±5% from 300-1000 ppm (CO2)
Resolution: 1 ppm
Enclosure Rating: General Purpose
Sampling Distance: 0 to 1,200' (0 to 365 m)
User Interface: Backlit, graphic LCD 160 x 128 pixel; three status LEDs
Power: 100 to 240 VAC, 50/60 Hz, 20W
Analog Communications: 4 to 20 mA (optional)
Digital Communications: Modbus RTU via RS 485
Operating Voltage: 100 to 240 VAC, 50 / 60 Hz
Relay Rating: 3 alarm relays, 1 fault relay, SPDT
Wiring: 5 A @ 250 VAC, resistive load
Alarm: Integrated Audible / Visual Alarm
Ambient Temperature: 32 to 122°F (0 to 50°C)
Humidity: 5 to 90 %RH, non condensing
Altitude: 0 to 6,560 ft (2,000 m)
Buzzer Volume: 80 dB @ 10 cm
Product Dimensions (L×W×H): 13.7” × 12.3” × 5” (350 × 315 × 130 mm)
Product Weight: 15 lbs. (6.8 kg)
Sensor Type: NDIR
|
SAM Sampling System
