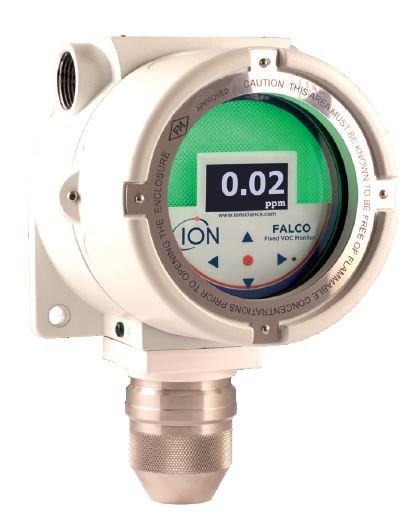

Falco Diffused Gas Detector

Fixed VOC Gas Detector

The Falco fixed VOC Gas Detector, diffused model, is a fixed VOC gas detector that eliminates false readings found with other competing fixed detectors and continuously detects Volatile Organic Compounds (VOCs) in hazardous areas. The fixed VOC gas detector instrument is ideal for detecting VOCs in areas such as refineries and petrol chemical facilities.

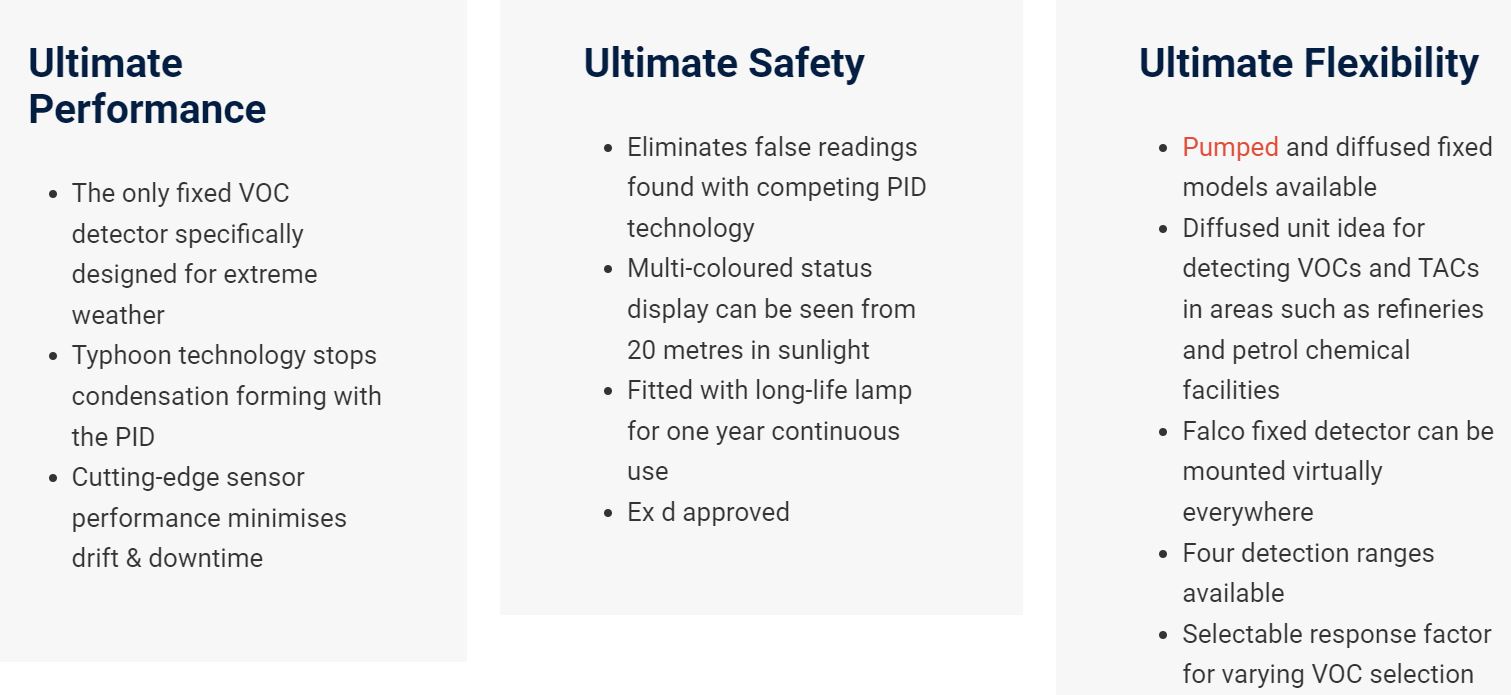

Features

The Falco Diffused, fixed VOC gas detector has an externally located Intrinsically Safe sensor for quick and easy servicing without the need for a hot work permit. Dual certification allows your fixed VOC gas detector to be serviced and calibrated in a hazardous environment without having to remove power!

The standard Falco, both the Pumped and Diffused models are supplied with a 10.6 eV lamp allowing the fixed instrument to detect a wide range of VOC gases. The fixed gas detector has 4 detection ranges available, these ranges include 0 – 10 ppm, 0 – 50 ppm, 0 – 1000 ppm and 0 – 3000 ppm.

The fixed Falco TAC, both pumped TAC and diffused TAC models, utilise a 10.0 eV lamp to detect Total Aromatic Compounds (TACs) which help focus on benzene. The fixed Falco TAC is available with a detection range of 0 – 50 ppm.

Technical Specification

Sensor：Photoionisation detector

Detection ranges and sensitivity with 10.6 eV lamp fitted：

• 10.0 ppm, 0.001 ppm
• 50.0 ppm, 0.01 ppm
• 1000 ppm, 0.1 ppm
• 3000 ppm, 1 ppm

Detection ranges and sensitivity with 10.0 eV lamp fitted：50.0 ppm, 0.01 ppm

Response Time (T₉₀)： Diffused models: <30 seconds

Accuracy：± 5 % or ± 1 digit

User Interface：

• OLED high contrast white on black: 128 x 64 pixels
• Screen size: 35 mm (w) x 17.5 mm (h)
• 5 magnetic switches with LED confirmation (up, down, left, right and enter)

Status indicator：Bright visible status indicator: RED, AMBER, GREEN

Output：

• 4 – 20 mA
• 2 programmable relays
• RS 485 Modbus

Falco diffused environmental specification：

• Operational Temperature: – 40 to 50 °C 0-100 % RH and condensing humidity
• Storage temperature: – 40 to 60°C

Ingress Protection：

• Main Unit:IP65
• Sensor Head: IP65

Power：Working voltage: 12 to 40 Vdc，Typical 2 W, Max 7 watts

Mechanical Interface：2 x cable entry points with 3/4″ NPT threads (left and right)

Mounting Points：2 x M8

Weight and Dimensions：

• 2.9 kg
• 205 (h) x 191 (w) x 125 (d) mm
