SF6 LeakCheck P1:p

SF6 gas leak detector

The SF₆ LeakCheck P1:p is an award winning SF₆ gas leak detector that uses negative Ion Capture (NIC) technology designed for location, leak testing and detection of SF₆ leaks in high electrical switchgear.

The SF₆ gas leak detector rapidly detects SF6 gas leaks down to 1 x 10-8 ml/sec with a quick clear down of less than 1 second. The SF6 gas leak detector is unaffected by the exposure to large SF6 gas leaks and will continue to remain uncontaminated even after the exposure to 100% SF₆ gas.

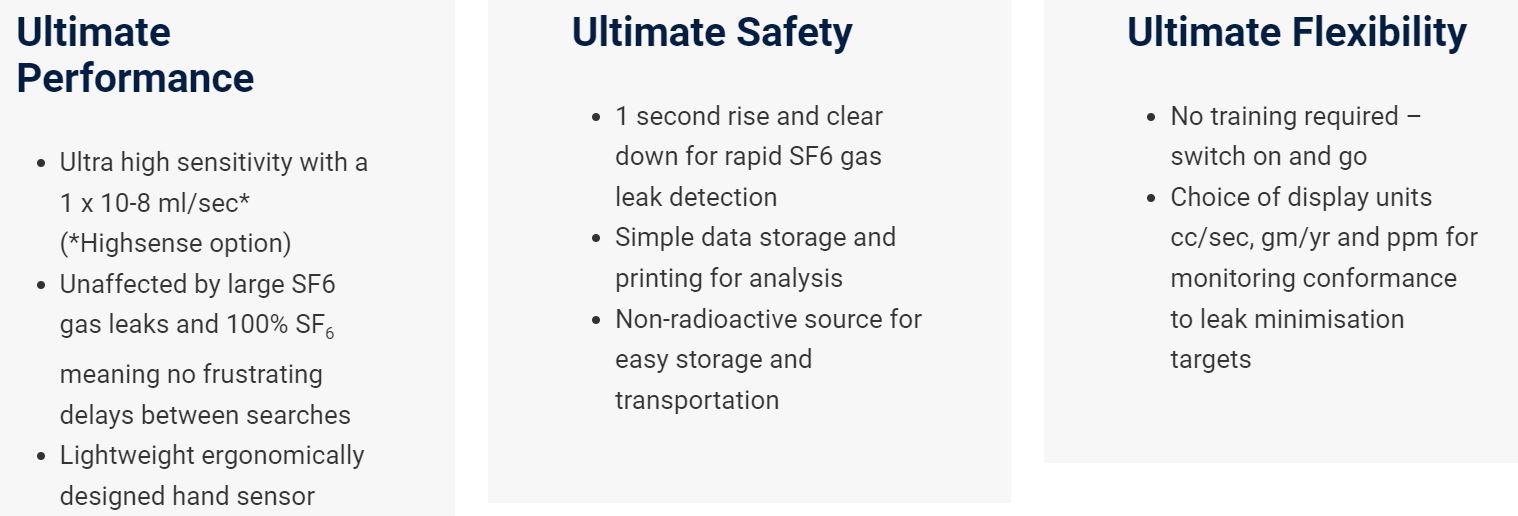

Features

The SF₆ gas leak detector has a range of accessories available including the 5, 10 and 15 metre extension hose and the 300 & 500mm flexible probe extender.

Technical Specification

Measurement Principles: Negative Ion Capture (NIC): a non radioactive, non-restricting carriage and no licensing required

Sensitivity:

Standard SF₆ GasCheck p1 and LeakCheck P1:p
1 x 10-7 ml/sec, 1 ppm, 0.01 gm/yr SF₆
Highsense option
1 x 10-8 ml/sec, 0.1 ppm, 0.001 gm/yr SF₆

Response: T₉₀ = < 1 second rise and clear down

Operation:

Lead acid battery, internal and fully protected
Recharge between 85-265 AC V, 50/60 Hz

Alarm: Audio and visual with an optional handset alarm

Measurement Units:

Measurement in l/sec, gm/yr and ppm
Range: Each unit 1 – 500
Accuracy: ± 5 % of displayed leak rate or ± 2 digits
Repeatability: ± 1 digit

Data Logging:

Over 500 data points with date and time stamp
Download via RS232 to a PC

Temperature:

Storage: – 10 to 60 °C (14 to 140 °F)
Operating; 0 – 50 °C (32 to 122 °F)

Weight and Dimensions:

Consol: 500 x 400 x 190 mm (19.7 x 15.7 x 7.5″)
Shipped: 520 x 430 x 10 mm (20.5 x 6.9 x 8.3″)
Shipped 15 kg (33lbs)
